Mod: SB-3-1 ELECTRIC PUMPING PUMP
![](/uploads/202207/13/202207131442024737.jpg)
All stainless steel with explosion-proof motor
Rated Voltage: 220V
Rated input Power: 880W
No-load Speed: 12000r/min
Hydraulics lift: 6m
Delivery capacity: 130L/min
Import OD: 50mm
Exit diameter: 32mm
Explosion-proof area:

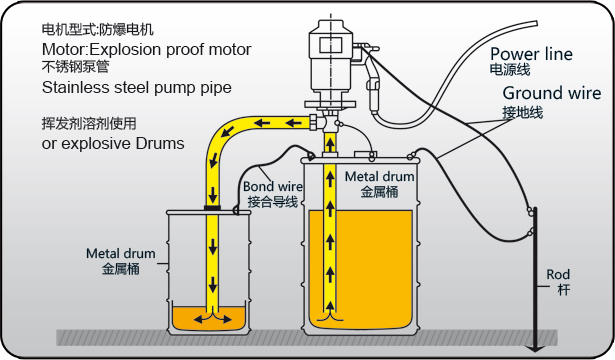

Not all of the SB series drum pump can be used in hazardous areas, transport flammable and explosive fluids only explosion-proof motor with stainless steel tubes can be used in hazardous areas, at the same time need to install anti-static device (Figure 1).
Note:
In order to reduce the risk of static build-up, it is recommended that the flow requirement is less than 130L/min.
When transporting flammable and explosive medium, owing please install electrostatic protection device
