home > PRODUCTS > ELECTRIC BARREL PUMP >

ELECTRIC BARREL PUMP

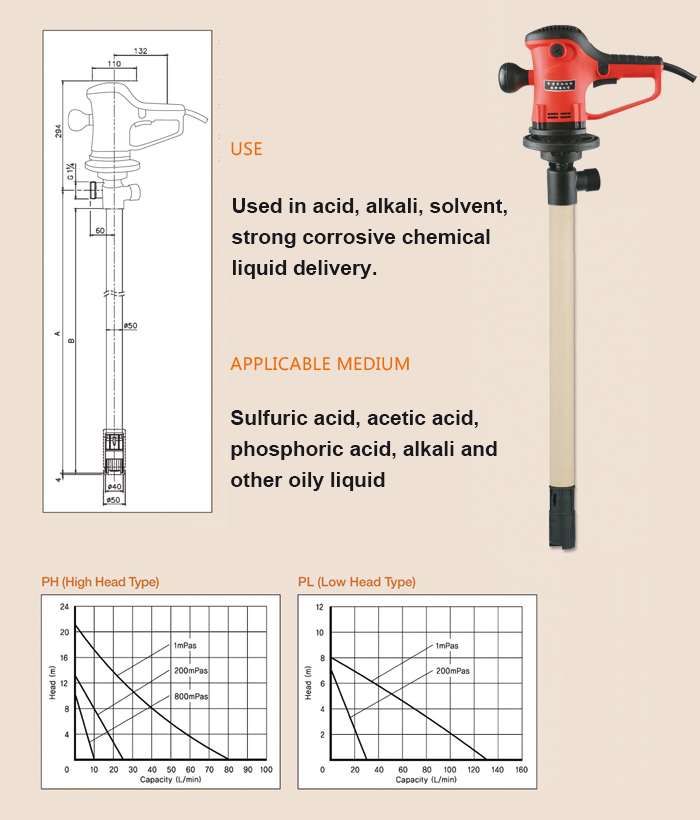

D72 CHEMICAL INFUSION PUMP

Appearance patent: ZL201230229169.6
Utility model patents: ZL201220274565.5

Rated Voltage:    220V
Rated input Power:  1600W
No-load Speed:    300-18000r/min
Hydraulics lift:     9m
Delivery capacity:   50-250L/min
Import OD:      50mm
Exit diameter:     25mm
Viscosity range:     Max800CPS



1. suitable for sobbed acid is strong corrosive alkaline liquid,

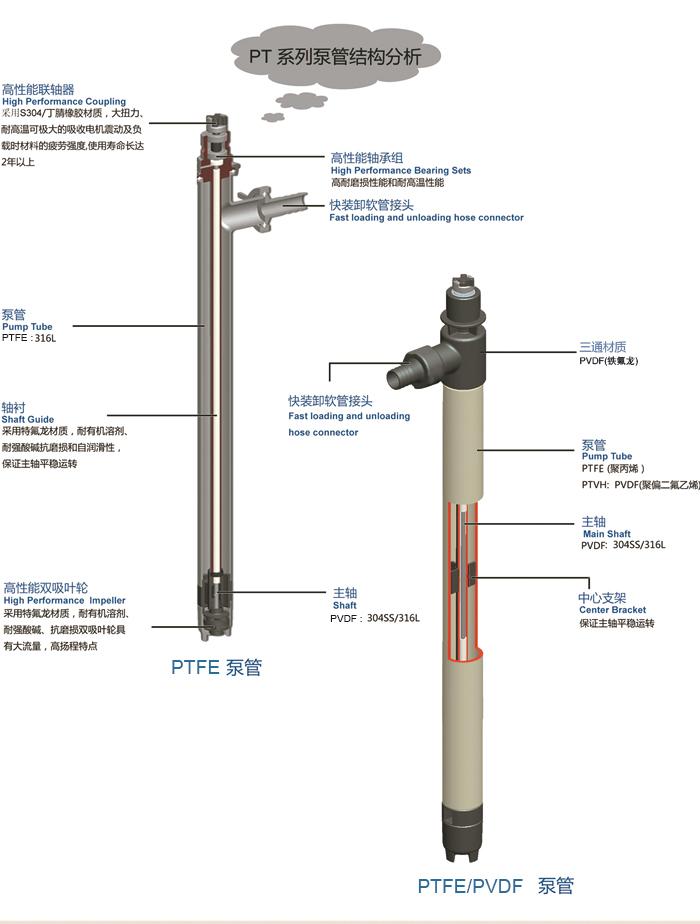

2. high-lift pump pipe, no leakage, axial vacuum structure at work when the axial pump is in negative pressure, the liquid will not leak from the shaft end, pump pipe adopts modular design without sealing structure, at the same time from the leakage of the problems of mechanical seal failure and maintenance work.





SHOULD NOT BE EMPTY MACHINE RUNNING, NON-RIOT MODELS

■New product design, accord with human body engineering, ensure that all manipulate feel comfortable.
■Soft start switch with 6 speed station.
■Machine with overload function to enlarge the lifetime.
■Superpower motor,To extract the liquid smoothly and easily
