Appearance patent： ZL201230229169.6


Rated Voltage：    12V/24V
Rated input Power：  750W
No-load Speed：    15000r/min
Hydraulics lift：     6m
Delivery capacity：   150L/min
Import OD：      42mm
Exit diameter：     25mm
Viscosity range:     Max500CPS

SHOULD NOT BE EMPTY MACHINE RUNNING, NON-RIOT MODELS

1、The use of dc infusion pump, should check whether the current voltage is consistent with the rated voltage(24 v and 12 v).
2、Has damage the power cord is strictly prohibited, and may not use the plug or socket, avoid water, oil into the motor, switch and electrical parts.
3、In order to ensure and extend the service life of the motor, this machine is not continuous work (dc current is great), due to current in the motor shell fever(under 60 ℃)belongs to the normal work.
4、Users beyond the service life of the product of wear, such as the carbon brush, switch, etc.) be sure to use the company's special accessories.
5, when use, the power cord to lengthen, is not lower than the national standard 2.5 square wire connection shall not be false welding.

A new oil delivery tools, it is directly connected to the 24V power supply can be inserted into the barrel to extract diesel barrels species, and a variety of cosmetics, and non-flammable liquids, easy to use, suitable for a variety of excavators, shovelpumping vehicles, large trucks, large machinery and equipment, the appearance of the product innovative design, reasonable structure, power, oil and out smoothly, more thorough oil absorption, quiet operation, simple operation and safety.

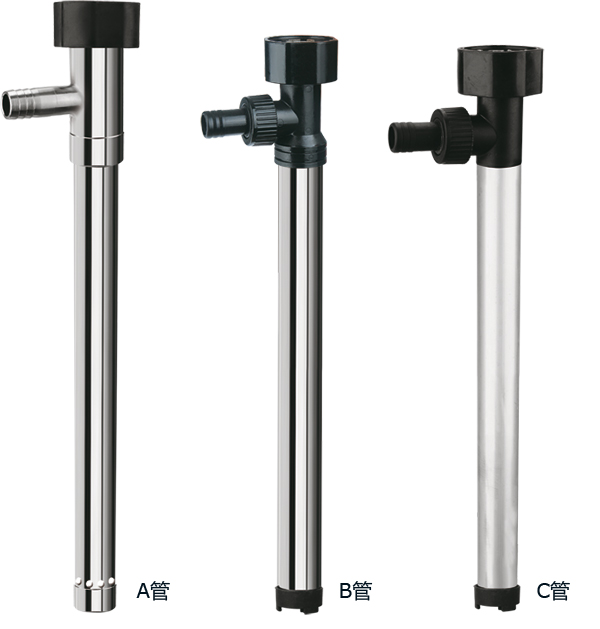

A tube: the inner core 304 stainless steel, 304 stainless steel outer tube, the three-way outlet 304 stainless steel Suitable for food, medicine, acidic and alkaline liquid.

B tube: the inner core 304 stainless steel, 304 stainless steel outer tube, tee for engineering plastics Suitable for acid-base chemical liquids and oil.

C tube: the inner core is highly elastic steel outer tube of aluminum alloy, tees for engineering plastics Applicable to oil and ordinary neutral liquid.

Considered when buying drum pumps work environment, and to extract the object to select different styles of pumping the pump and tubing;
Please check the import export tubes connected together locking
Manufacturers can also according to the prices there are three different pipe for the customer to choose
